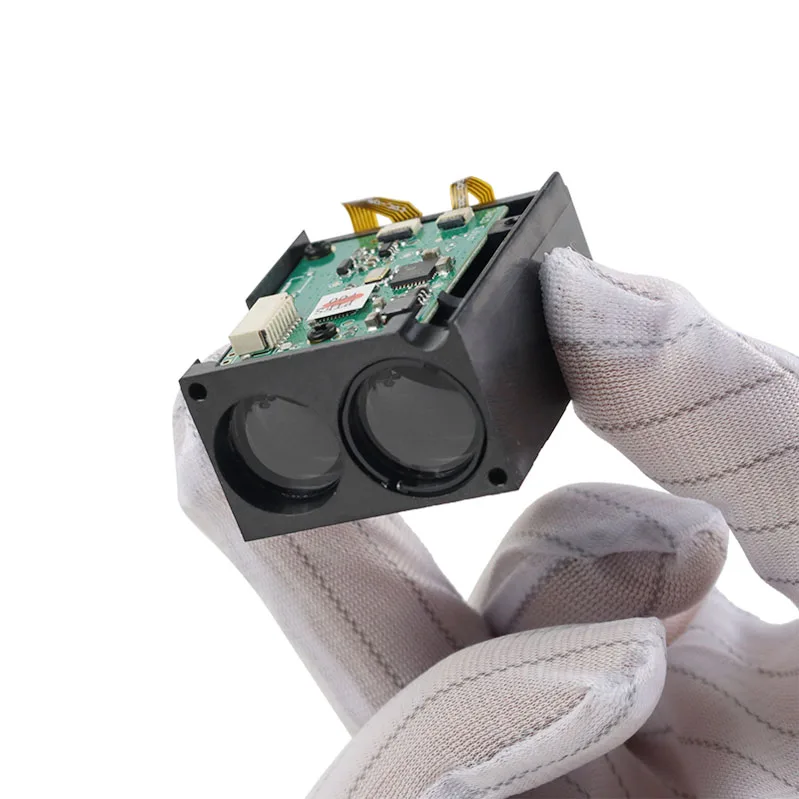

PTFH High frequency Laser Sensor

Overview:

The PTFH High frequency Laser Sensor is an advanced laser rangefinder sensor that utilizes pulsed laser technology to measure distances. By emitting a series of laser pulses and calculating the round-trip time of the laser beams, it provides highly accurate measurements with exceptional range and speed. The PTFH series is engineered for a wide range of applications, from displacement measurements to speed monitoring, and is suitable for both indoor and outdoor environments. With its ability to operate at frequencies up to 500Hz, it provides rapid and precise data collection, making it an ideal choice for dynamic or real-time applications.

Measurement Principle:

The PTFH High frequency Laser Sensor employs Time-of-Flight (ToF) technology, utilizing pulse laser emission. A series of laser pulses are emitted toward the target object, and the time it takes for the pulses to return to the sensor is measured. This data is then used to calculate the distance to the target. The high-frequency pulsing (up to 500Hz) ensures real-time measurements, even in fast-moving or changing environments, while maintaining high accuracy.

Technical Specifications:

Dimension:

Applications:

The PTFH Pulse Laser Ranging Module is highly versatile and can be deployed across various industries, including:

• Speed Measurement: Ideal for measuring the speed of moving objects, such as vehicles, conveyor belts, and machinery in industrial processes.
• Displacement Measurement: Perfect for precise displacement tracking in robotic applications, CNC machines, and manufacturing systems.
• Distance Measurement: Commonly used in applications that require accurate distance measurements, including automation, surveying, and construction.
• Obstacle Detection: Excellent for detecting objects in industrial robots, drones, and autonomous vehicles to ensure safe navigation.
• Height Measurement: Used for height gauging in applications like material handling, elevator monitoring, and measurement of structural components.

Advantages of the PTFH High frequency Laser Sensor

• Fast Measurement Speed: With support for frequencies ranging from 100Hz to 500Hz, it can handle fast-moving targets and provide real-time distance data, making it ideal for dynamic environments.
• Reliable in Challenging Conditions: The module works effectively in both indoor and outdoor settings, with its long measurement range and strong anti-jamming ability ensuring consistent performance.
• Safety and Compliance: The 905nm Class I laser ensures safety for the human eye, meeting international standards for laser safety, and making it suitable for a wide range of industries.
• Compact and Lightweight: The small size and light weight make the module easy to integrate into systems without taking up much space, ideal for embedded applications and portable devices.
• Customizable Settings: The PTFH module offers a variety of customizable settings, including measurement frequency, making it adaptable to specific requirements across different applications.

Customization Services

Meskernel offers customization to suit your specific needs:

• Measurement Range and Accuracy: Custom adjustments to meet specific application requirements.
• Frequency Customization: Support for user-defined frequencies between 100Hz and 500Hz, enabling tailored solutions for high-speed measurements.
• Communication Interface Options: Tailored solutions for different system integrations, including TTL, RS232, RS485, and Bluetooth configurations.
