TF3800 3km Eye-Safe 1535nm Laser Rangefinder Module for Long-Range Detection

Product Description

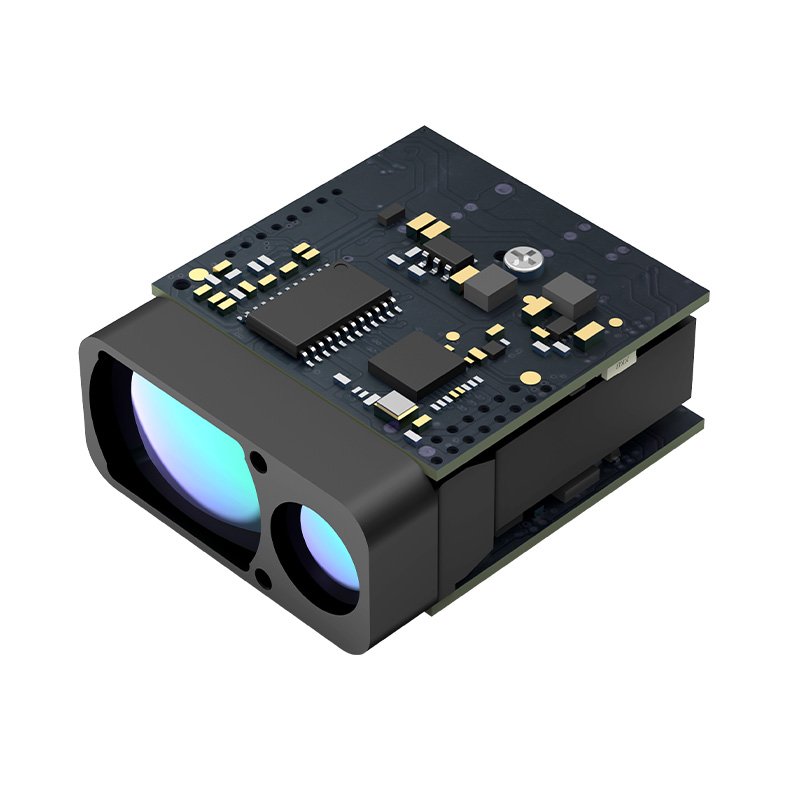

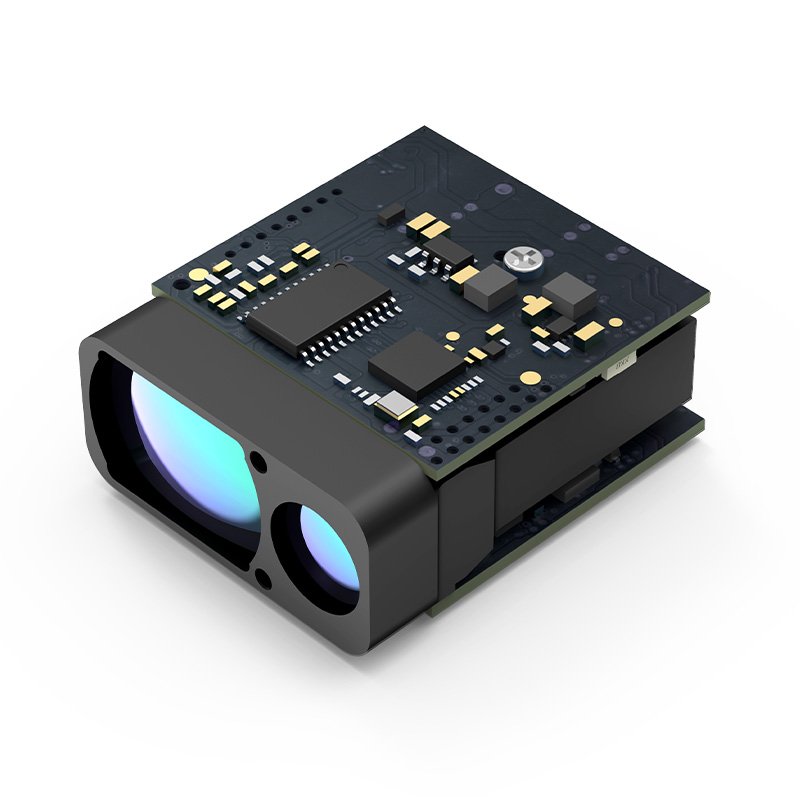

Le TF3800 is a high-performance 1535nm laser rangefinder module capable of measuring distances from 10 meters up to 4000 meters with ±1 meter accuracy. Using an eye-safe laser emitter that meets Class I safety standards (IEC 60825-1), this module is designed for applications requiring long-range, high-accuracy, and safe-to-human operation.

Thanks to its advanced laser emission and receiving system, TF3800 delivers high signal-to-noise ratio performance even under strong sunlight or foggy outdoor environments. It is particularly suitable for scenarios such as UAV height sensing, surveillance, target ranginget mobile mapping.

Son compact design and lightweight structure allow easy integration into airborne systems, vehicle-mounted platforms, industrial equipment, and more. Whether you are developing a smart mobility solution or building an outdoor positioning device, TF3800 Eye-Safe Laser Rangefinder Module offers exceptional stability, flexibility, and precision.

Spécifications techniques

Paramètres	Specification
Model	TF3800 Eye-Safe Laser Rangefinder Module
Laser Wavelength	1535±5nm (Eye-Safe, Class I)
Plage de mesure	10m – 4000m
Précision de la mesure	±1 mètre
FOV	0.5±0.1 mrad
Repetition Rate	1–10Hz (adjustable/customizable)
Options d'interface	UART / TTL (default), RS232 / RS485 optional
Supply Voltage	3V–5V DC
Dimensions	27.5mm × 24mm × 15mm
Poids	About 15g
Température de fonctionnement	-20°C to +60°C

Features

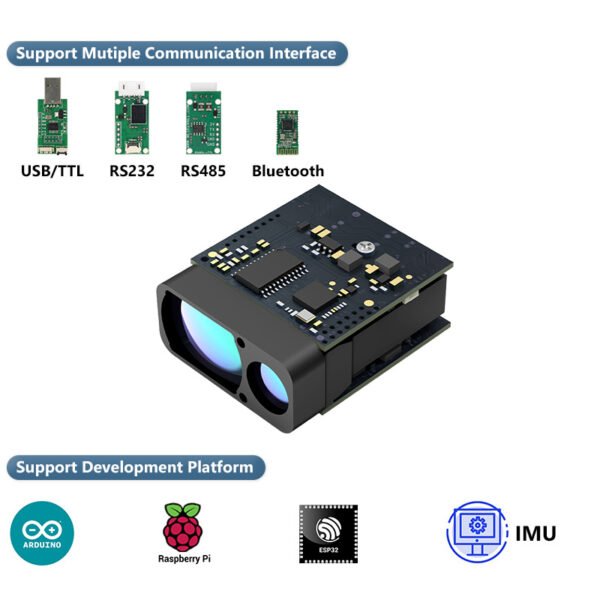

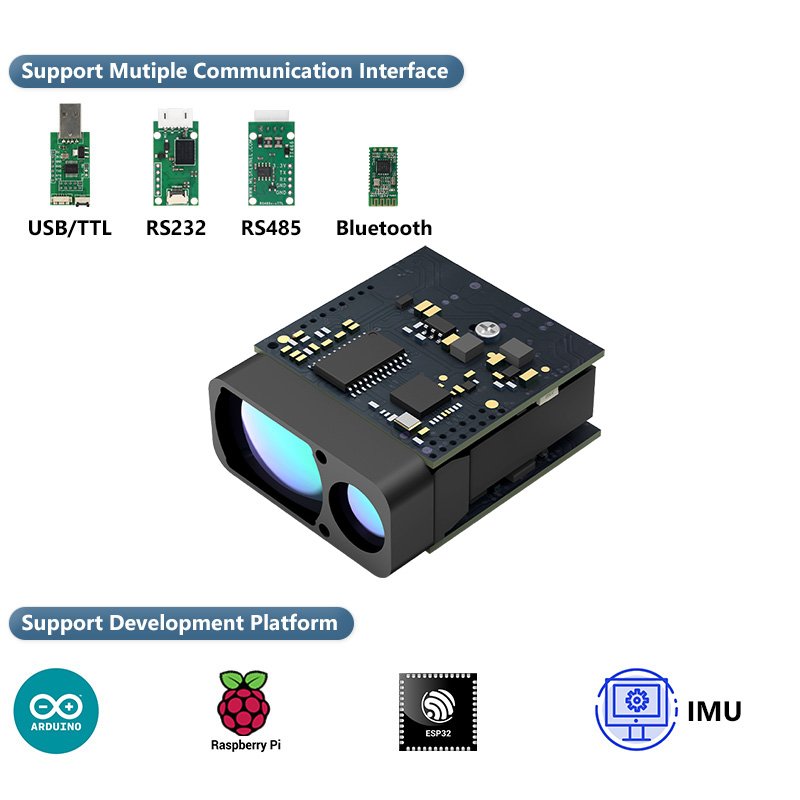

Serial Communication Interfaces

The TF3800 laser rangefinder module supports multiple serial communication interfaces, y compris UART, TTL, and optional RS232 ou RS485, allowing flexible integration into various systems:

• UART (Universal Asynchronous Receiver/Transmitter): Widely used in embedded systems for full-duplex communication with microcontrollers or PCs.

• TTL (logique transistor-transistor): Ideal for direct connection with low-voltage logic devices like development boards and single-chip microcontrollers.

• RS232 (optional): Common in industrial equipment and computers for longer cable communication and higher noise immunity.

• RS485 (optional): Suitable for long-distance and multi-device communication in noisy industrial environments.

These interfaces allow users to connect the TF3800 1535nm laser rangefinder module seamlessly to their host systems with minimal configuration.

Compatible avec Arduino, Raspberry Pi et ESP32

The TF3800 is fully compatible with popular development platforms such as:

• Arduino: Perfect for hobbyists and prototyping; simply connect the UART/TTL interface to the Arduino’s serial pins to start collecting distance data.

• Raspberry Pi: Supports Python or C-based development; easily interfaces via the GPIO serial port for applications like mapping or obstacle detection.

• ESP32: Enables wireless data transmission using Wi-Fi or Bluetooth; ideal for IoT-based distance measurement and smart monitoring systems.

With provided communication protocols and wiring guides, developers can quickly integrate the TF3800 1535nm laser rangefinder module into their applications, from DIY projects to commercial embedded systems.

Applications typiques

• UAV Altitude Measurement
  Ensures safe flight control and terrain following by providing accurate long-range distance feedback.

• Vehicle-Mounted Obstacle Detection
  Enables autonomous or semi-autonomous vehicles to detect distant obstacles early, improving safety and efficiency.

• Thermal Imaging and Surveillance Systems
  Integrates easily with targeting and tracking systems for security, border patrol, or wildlife observation.

• Mapping and Surveying Equipment
  Measures distances in forestry, agriculture, or mining environments, even on sloped or irregular terrain.

• Automatisation industrielle
  For positioning, object detection, or distance feedback in large industrial equipment or smart factories.

Integration & Customization

We provide SDKs, protocol documentation, and integration guides for developers and integrators. Whether you are connecting to an industrial PLC, a drone flight controller, or a microcontroller like STM32 or Raspberry Pi, we support fast integration.

Customizations such as:

• Réglage de la fréquence de mesure

• Communication interface change

• Waterproof housing upgrade

• Filter settings for sunlight or fog environments

are available for volume orders. Contact us for design consulting and engineering support.
