Efficient Volume Measurement with Laser Distance Measure Sensors
In industrial automation, logistics, and packaging environments, efficient and accurate volume measurement of standard-shaped objects is essential for optimizing operations. Traditional manual methods are time-consuming and error-prone, while bulky scanning equipment lacks flexibility. A compact and effective alternative is the use of a laser distance measure sensor setup to measure object dimensions and calculate volume automatically.
Three-Sensor Setup for Volume Calculation
For rectangular or box-shaped objects, a fixed-corner measurement system provides a simple and reliable solution. The object is placed in a right-angled corner formed by two vertical surfaces and the floor. Three laser distance measure sensors are strategically installed:
- One sensor above the object measures its height.
- One sensor on the left measures the width.
- One sensor on the right measures the length.
This layout allows for simultaneous and precise measurement of all three dimensions. Once the data is captured, the system calculates the volume = Length × Width × Height, and the results are immediately transmitted to a connected device.
Real-Time Measurement via TTL Output
Each sensor communicates with a computer or embedded system through a TTL interface, enabling real-time data transfer. The system logs each measurement and can automatically record or transmit the calculated volume to a warehouse management system or database for tracking and analysis.
Why Choose Meskernel’s LDL-S Laser Distance Measure Sensors?

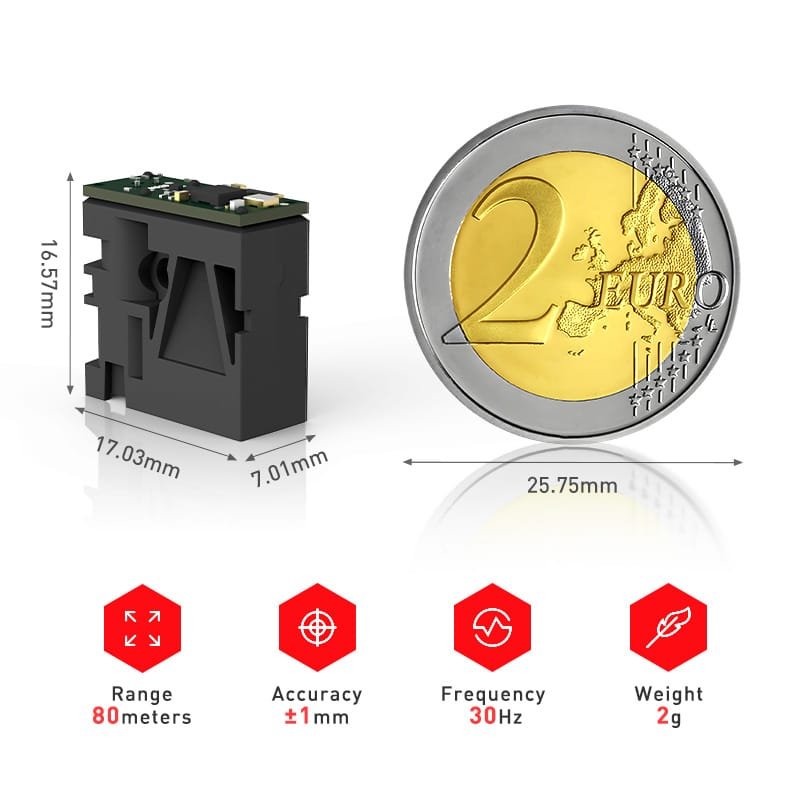

At Meskernel, our LDL-S series stands out as a compact and high-performance solution among distance measurement laser sensors. Designed for fixed installations and automated systems, the LDL-S series offers:
- Ultra-Compact Design: Easy to integrate into corners, equipment enclosures, or automated setups.
- High Accuracy: With a precision of up to ±1mm, suitable for inspection and quality control.
- Fast Measurement: Operating at up to 30Hz, ideal for real-time production lines.
- Stable TTL Interface: Ensures reliable connection and data integrity in industrial environments.
These features make LDL-S sensors a smart choice for businesses looking to automate volume measurement without sacrificing space or accuracy.
Application Scenarios
This type of laser-based volume measurement system is especially effective in:
- Logistics and distribution centers
- Smart warehouses and inventory control
- Packaging and shipment verification lines
- Automated sorting systems
- Manufacturing quality assurance processes
Benefits of Using a Distance Measurement Laser Sensor System
- Non-contact, wear-free measurements
- Instant volume calculation for standard-shaped items
- Reduced manual handling and labor costs
- Improved data consistency and traceability
- Easy integration into existing automation platforms
Conclusion
By leveraging a fixed-corner setup using three laser distance measure sensors, businesses can achieve reliable, accurate, and real-time volume measurement of regular-shaped objects. Meskernel’s LDL-S distance measurement laser sensor series delivers the precision, speed, and ease of integration required for modern industrial applications. Whether used in logistics, packaging, or manufacturing, this solution offers a practical way to enhance productivity and ensure measurement consistency.
For a comprehensive overview of how laser sensors are utilized in industrial automation, including non-contact measurement and handling of challenging surfaces, refer to this industry article.
