Laser Distance Module for Arduino – High Precision Green Laser Sensor

If you are searching for a reliable, accurate, and fast distance measurement solution for Arduino, this Laser Distance Module Arduino is designed specifically for engineers, makers, robotics developers, and IoT innovators. Our LDJ laser distance sensor integrates seamlessly with Arduino and many popular microcontroller platforms. Featuring green laser technology (510–550nm), it brings more stable performance in bright environments, especially when sensing reflective materials or outdoor targets.

Unlike ordinary ultrasonic sensors or low-precision optical modules, this industrial-grade Arduino laser sensor module delivers long-range performance up to 200 meters, with high stability and precision suitable for serious development projects.

Why Choose Our Arduino Laser Sensor Module?

Our LDJ laser distance module is a plug-and-play solution for Arduino, offering:

• ✔ Extended Range: 0.03–200 meters

• ✔ High Accuracy: ±3–5 mm resolution

• ✔ Multiple Interface Options: UART / RS232 / RS485 / Bluetooth

• ✔ Fast Measuring Frequency: 3Hz, 10Hz, or 20Hz selectable

• ✔ Low Power Consumption: <220mA @ 3.3V

• ✔ Easy Arduino Integration with TX/RX communication

• ✔ Green laser version for better visibility and reflectivity

• ✔ Red laser version (610–690nm) optional

Thanks to its compact 64×40×18mm size and only 14g weight, the LDJ module is ideal for mobile or embedded measurement tasks.

Perfect for Arduino Projects

This laser sensor for Arduino supports real-time distance data output, making it capable of powering highly technical applications including:

• 3D modeling and scanning systems

• UAV altitude sensing

• AGV / AMR navigation

• Robotics mapping and obstacle detection

• Industrial automation

• Smart agriculture

• Tunnel or warehouse measurement

• Level and height detection systems

• IoT smart monitoring projects

If you are creating a device requiring millimeter-level feedback, this is the ideal sensor.

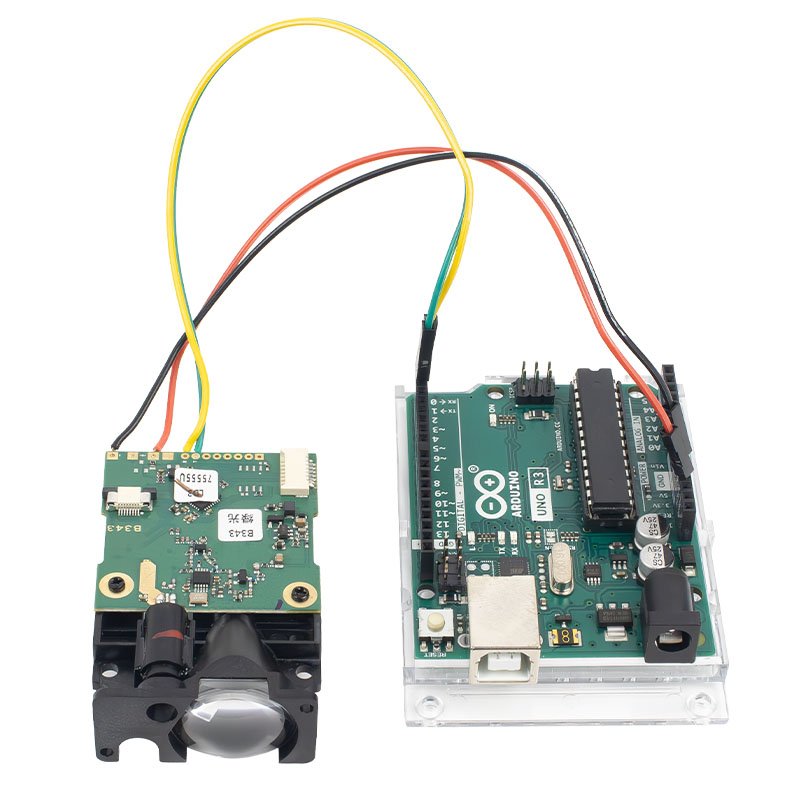

Simple & Safe Wiring to Arduino

Wiring to Arduino is effortless with four basic connections:

Tip: TX of the sensor goes to RX of Arduino, and RX to TX — simple and stable UART communication.

The module uses Class 2 laser level, ensuring safe operation for development and industrial testing scenarios without requiring additional protection.

Stable Green Laser + Optional Red Laser

Not every project runs in ideal indoor lighting. The 510–550nm green laser version offers:

• Higher visual brightness to the human eye

• Better detection on surfaces that are bright, white, or glossy

• Higher accuracy in outdoor light

If cost control is needed or performance requirements are moderate, the 610–690nm red laser model is also available.

You can choose the version according to your application environment.

Technical Specifications

This flexibility allows smooth integration for both wired and wireless applications.

Complete Development Support for Arduino Users

We provide everything needed for quick prototyping:

• Sample Arduino source code

• Serial communication protocol document

• Wiring guide + tutorials

• Quick setup support

Whether you’re a beginner or an experienced embedded engineer, you can get reliable measurement output with minimal setup.

Your Best Choice for Arduino Laser Distance Measurement

This Arduino laser sensor module fills the performance gap between cheap hobby sensors and expensive LiDAR systems. It brings industrial-grade performance into maker and R&D environments.

 Long-range up to 200m
 Stable accuracy suitable for engineering tasks
 Compact and easy to embed
 Green or Red laser versions tailored for your needs
 Full Arduino integration support

If your project requires real-time, precise, and far-distance measurement — you’ve found the right module.
